NG/LPG Gas Brooder Used In Poultry Equipment For Animal Husbandry Equipment
Production Induction
Production specification
| | valve |
| warranty | 1 year |
| showroom location | none |
| video outgoing-inspection | provided |
| marketing type | ordinary product |
| Warranty of core components | 1year |
| Core Components | ceramic plate |
| Place of Origin | Chongqing, China |
| Brand Name | THD |
| Model number | THD6808 |
| weight | 3.7 |
| size | 675*235*95mm |
| gas type | LPG/ NG |
| heat output | 3400Kcal/h |
| gas consupmtion | 0.27kg/h |
| advantage | 20% Gas Saving |
| application | Poultry farm, livestock farm, warehouse |
| material | Aluminzied steel |
| technology | Covered rare earth catalyst on the ceramic tile |
Our Advantage
This heater uses catalytic combustion technology, has a higher heat conversion capacity. Under the same air consumption, it releases more heat and produces less waste gas.
1. Economical & Energy saving
2. Environmental protection
3. High efficiency
4. Flameout protection device
5. Radiation area: suspended from the ground at 0.9 ~ 1.5m high radiation area of 10 ~ 20 square meters, heating 600 ~ 1500 chickens.
6. Silent, light and comp
Application
1) Heating of sports hall, church, patio, garage, exhibition hall, industrial building, workshop, warehouse etc.,

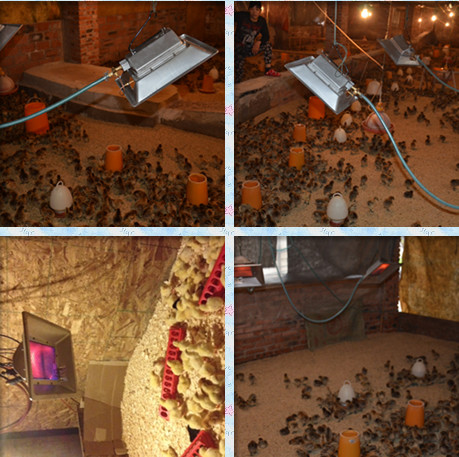

2) Poultry-livestock heating: widely used in poultry heating, farrowing, nursery , greenhouse etc.
Company Introduction
Established in 2005, Chongqing Haodong Technology Co., Ltd is a manufacturer specialized in the research, development and production of infrared catalytic burner, heater, brooder. We are located in Chongqing, with convenient transportation access.
The products depend on the patent technique which is advanced in the field. The high performance Oxygen Storage Materials (OSM), the high specific surface area materials which can resist high temperature, the combustion catalyst and the correlated patent technique are all included.
Notice & FAQ
1. Pls keep the gas inlet pipe side downward sloping when installation the brooder(as shown above) to prevent
overheating.
2. It’s normal phenomenon there is blue flame at beginning, after several minutes will disappear.
3. If the blue flame always stay on ceramic plate, pls check whether the pressure too low; If yes, pls adjust the booster pump.
4. If there is a big red flame, the reason maybe is
a. The pressure is too high. Pls adjust the pressure reducing valve to required pressure
b. Oxygen lack. Pls keep indoor air circulation when brooder working.
c. Ceramic plate is broken; Pls change the broken ceramic plate.
d. Gas purity difference. Each country gas purity is different, maybe will cause big fire, pls match suitable nozzle.
5. If it doesn't heat equal, pls check whether the feather block at filter net.
6. This product is flameless, only see the red heating surface no flame in normal working.
7. Pls check up and clean the complete system parts termly.
Factory show
Product Tags:
|
|
NG LPG Poultry Farm Gas Brooder Aluminzied Steel THD6808 Infrared Heater For Chicks Images
|
