Industrial Oven Thermostat Temperature Controller 110V / 220V Power Supply

Product Name: 110V / 220V Thermostat Temperature Controller For Industrial Oven

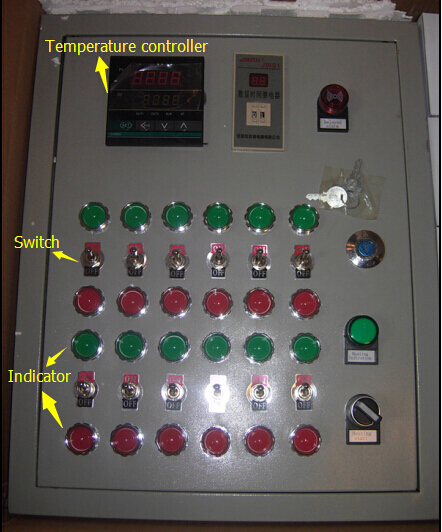

Thermostat outside :

It has tempearture controller, switch, indicator, power button, timer.

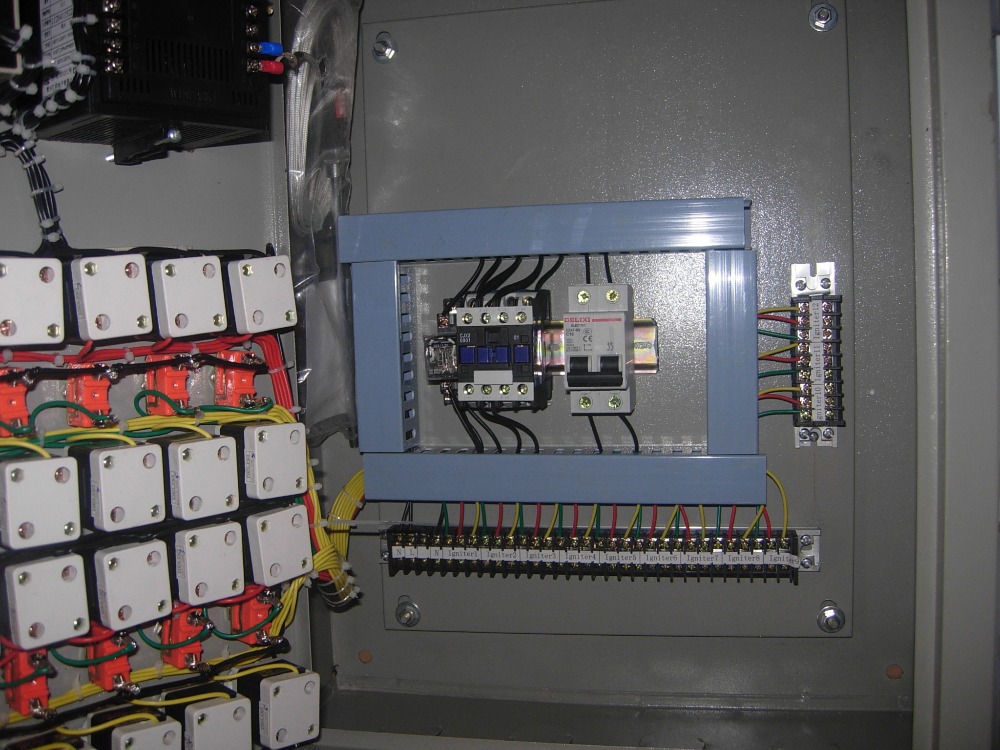

Thermostat inside :

I Working Purpose

The thermostat controls gas burner to keep stable temperature and save gas.

When heating area reaches setting temperature, the thermostat controls gas burner stop working;

When heating area under setting temperature, the thermostat controls gas burner start working again.

II Composition of Thermostat

It includes a thermocouple, a adjustable temperature controller, powder switch, ignite switch, working indicator and alarm.

One thermostat can control 1~25 sets gas heater/burner.

III Working Principle

Open gas cylinder → adjust gas pressure to 3500~5000pa → turn on the main power of electric

controller → setting required temperature → turn on ignition switch→Solenoid valve supply gas /

3 pins ignite gas burner/heater → gas burner/heater working normally.

2. Thermocouple detect the heating area temperature → reach setting temperature →

Half or all gas burner stop working → lower than setting temperature →

Ignition automatically by controller → Gas burners restart working.

IV Flameout Protection

When 3 pin failed ignite infrared burner/heater, pulse igniter will control solenoid valve stopping supply gas. So it avoids gas leakage.

Restart ignition: turn on ignition switch again.

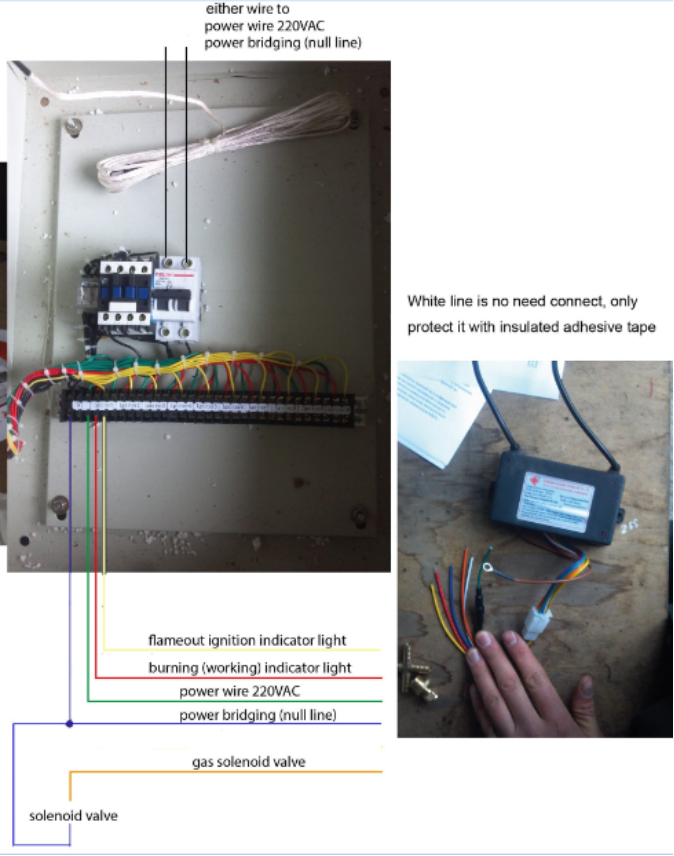

V Connection

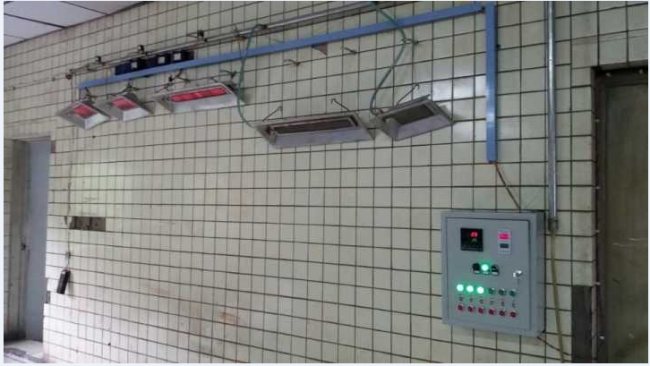

VI Installation system

CE Thermostat Temperature Controller

Thermostat Temperature Controller 110V

220V Industrial Oven Temperature Controller

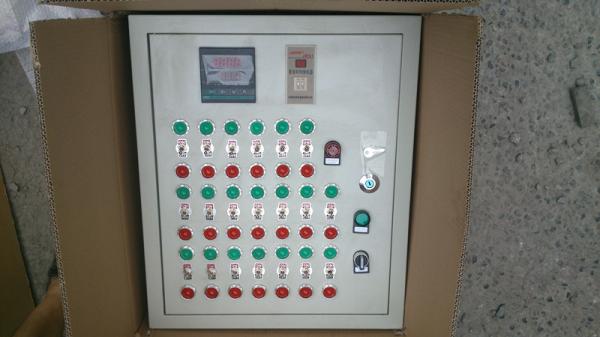

Industrial Oven Thermostat Temperature Controller 110V / 220V Power Supply Images
